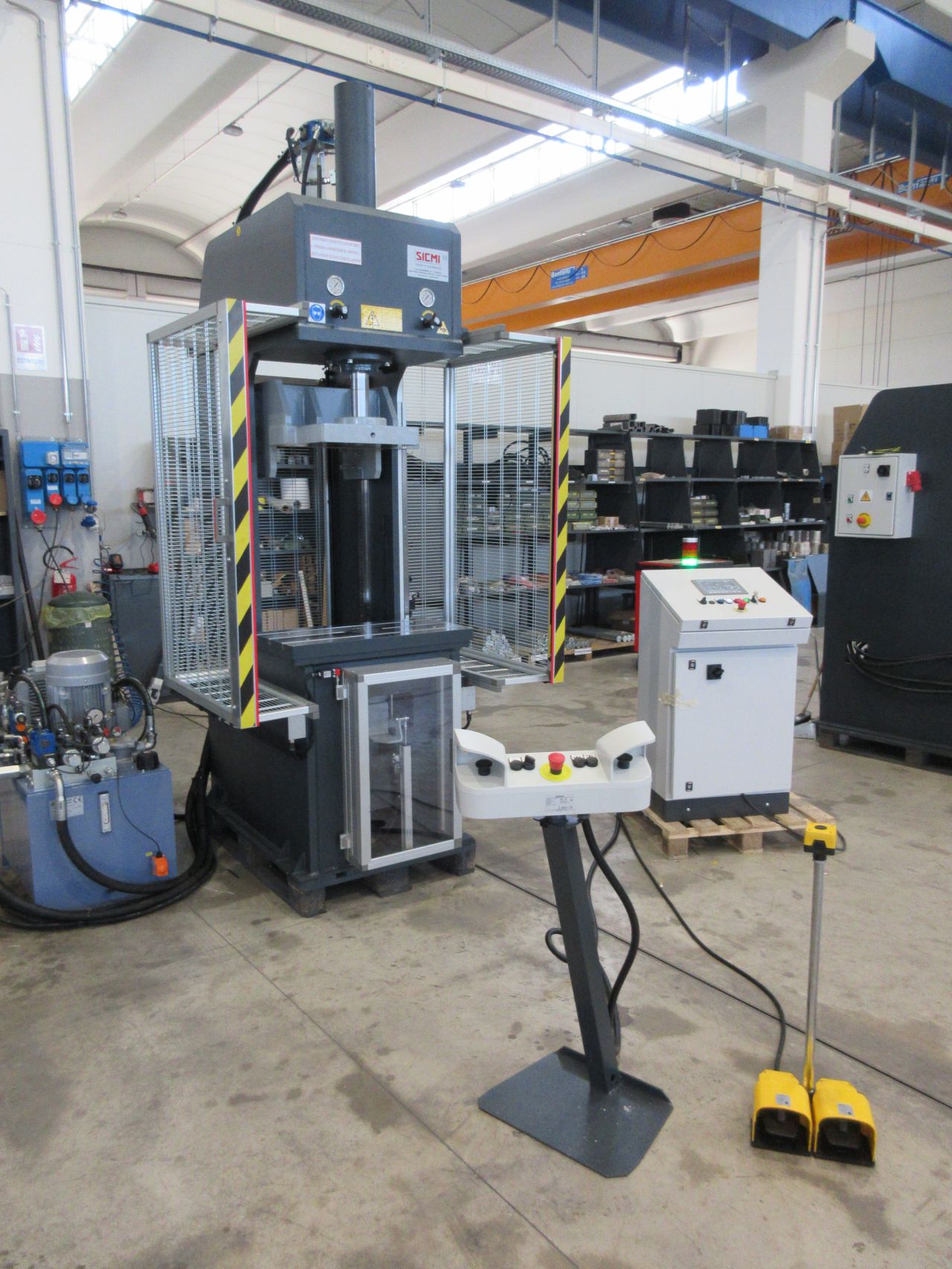

Upon specific request of one of our customers, we have produced the following 30 ton electro-hydraulic c-type press suitable for various sheet metal stamping and bending operations:
Equipped with:
– Upper surface with roller guides for excellent parallelism of the surface
– Stroke of the main cylinder 700mm
– Lower surface milled with T-slots to customer specification
– Special sliding side nets for bulky molds with photoelectric barriers positioned on the front
– Hydraulic cylinder with digital stroke adjustment
– Digital control with touchscreen display for setting the dimensions and speeds of the main cylinder
This 30 ton electro-hydraulic c-type press is equipped with all safety devices according to current regulations, the operator can use the press in the following ways:
– With closed nets with active barriers: the cycle is automatic with a simple push of a button and the operator’s hands can be free – approach speed higher than 120mm/Sec
– With nets open and barriers deactivated: the operator can operate the press with the double buttons simultaneously and the descent is 30 mm/sec
– Alternatively, the pedal can also be used, but in this case the maximum approach speed is 9 mm/sec
