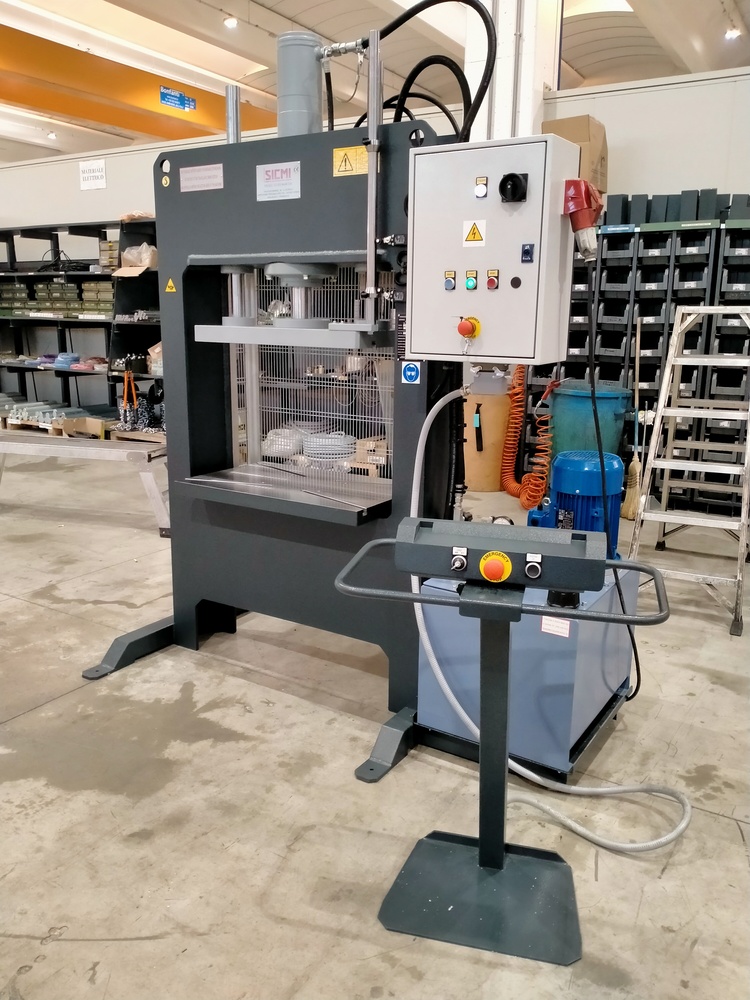

This H-Frame hydraulic press develops a power of 40 tons and is equipped with a fully milled work surface equipped with T-slots for fixing the molds.
The cylinder has an approach speed of 26 mm/sec and a working speed of 9 mm/sec. The piston stroke is manually adjusted via end-of-stroke sensors.
This two-column hydraulic molding press is operated by simultaneously using the double buttons and can work both in manual and automatic mode.
The latter provides for the automatic lifting of the cylinder both in the case in which the operator stops pressing the double buttons and every time the cylinder touches the lower limit switch sensor.
The mobile upper plane features 2 self-lubricating guides as standard for models up to 200 tons and 4 guides for 300 and 400 ton models. It is also equipped with T-slots for fixing the molds.
The lower table is instead bolted to the frame and is also equipped with T-slots.
The hydraulic control unit has 2 operating speeds, one for approach under 30 mm/sec and another for work which is activated when the upper table comes into contact with the piece to be worked on.
